10mm2-150mm2 PVC Insulated Yellow Green Ground Electrical Wire

Product Description

Overview
Quick Details
 Place of Origin: China (Mainland)                                            Brand Name: XINCHENG
Product name: Earthing Grounding Wire Earth Clamp             Usage: Outdoor used & Indoor used
Use: High Voltage Grounding Rods with Earth Clamp             Constitute: Grounding wire, earth rod and earth clamp/earth needle
Type: high voltage earthing rod                                                Model Number: Grounding/Earth Rod
Application: Suitable for making power failed equipments, preventing unexpected power
kind: 3 phrases or 4 phases, or customized                             Characteristics: Temporary Earthing equipment
Set: Three sticks or four sticks or customized.                         Rated Voltage: 0.4KV-750KV
The temperature scope for protective cover :±55°C.                Installation: vertical type, horizontal
The material of clamps: Aluminum/copper                               Strength: >=600N/mm2
The material operating rod: Super Epoxy Non-alkali Fiberglass Fabric Tube
Stick length: 0.5m, 1m, 1.5m, 2m, 3m or customized.
Length of Cable: 5m 10m 12m 15m 18m or customized.         Grounding copper wire: High purity 99.95%
Cooper wire's cross section area:
10mm²/16mm² / 25 mm² / 35mm² /50 mm² /75mm²/90mm²/95mm²/120mm²/130mm²/150mm²; or customized.
Color:  Red ,green, yellow or as per your requires                   Package: Portable bag, International Standard Package
Ground operating rod: IEC60855:1985.  IEC61235:1993.
Warranty: 3 Year                                                                      OEM: available



High Voltage Grounding Rods with Earth Clamp
          Earthing rods are matched with earthing wires and earthing pin or earth clamp to form a complete set. Application: Suitable for making power failed equipments or temporary short-circuited lines grounded, preventing unexpected power to intrude in and do damage to personnel and equipments.
        The material operating rod is Super Epoxy Non-alkali Fiberglass Fabric Tube
        Grounding wire is the line that connects the earth directly. It can also be called safety loop line. When danger occurs, it transfers high voltage directly to the earth, which is a lifeline. Grounding wire in power system: is an important tool to ensure staff when unexpected voltage occurs on the outage equipment and lines. In order to prevent electrostatic induction shock or mis-closing of nearby charged objects, The material operating rod is Super Epoxy Non-alkali Fiberglass Fabric Tube, and the soft ground connection is made of multiple strands of high-quality copper wire.

1, Brief introduction:
Composition:  Combined by phase lead, earth lead, earth bar and earth end clamp.
Product characters:  the hook adopts light aluminium alloy compression casting, pole use the light epoxy manufacture, hight strength, excellent ability of electric conduction. Baling wire uses electrolysis copper wire.
The temperature scope for protective cover: ±55°C
Product specification: cross area of earthing wire10mm²/16mm² / 25 mm² / 35mm² /50 mm² /75mm²/90mm²/95mm²/120mm²/130mm²/150mm²; or customized.

Product Description

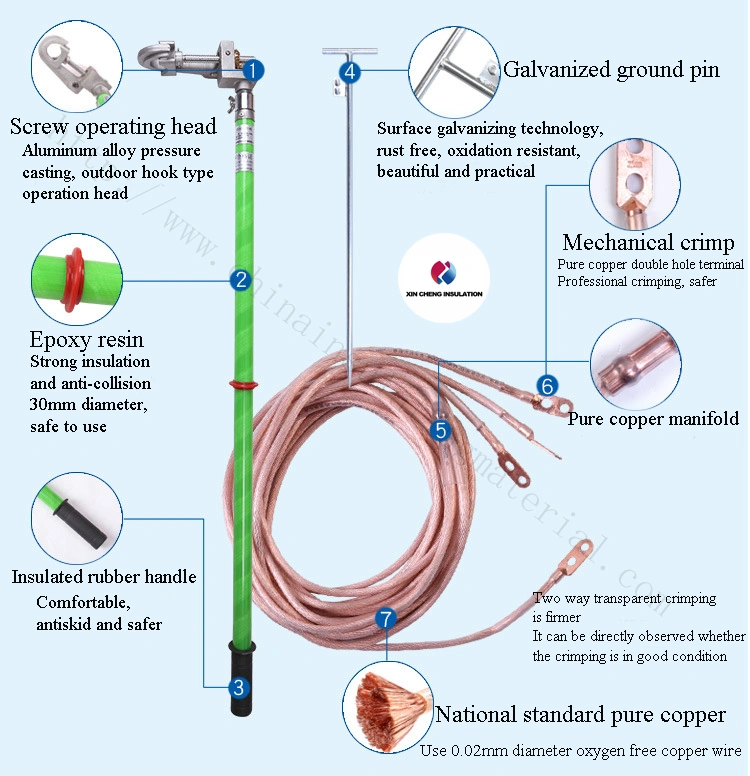

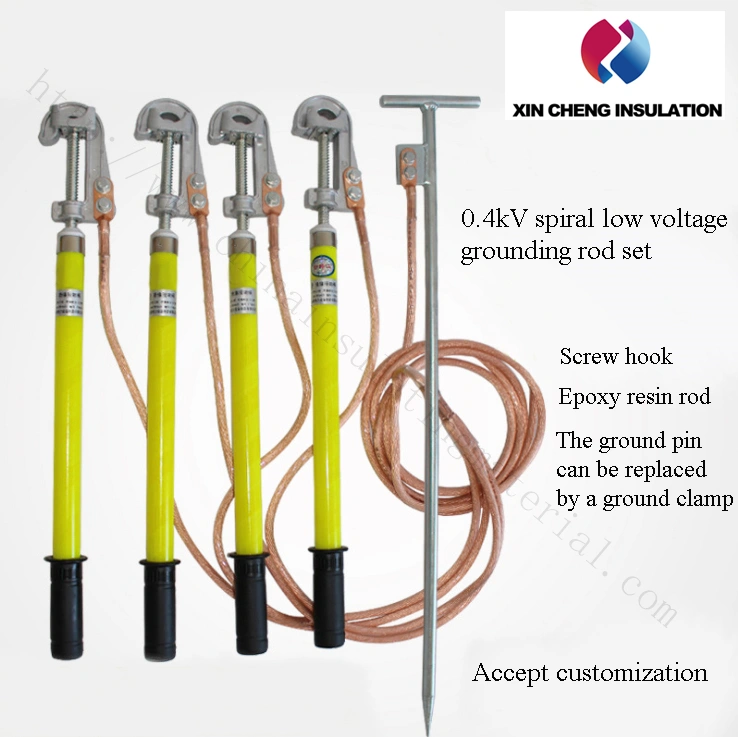

Grounding rod with clamp and copper wire equipment was made from fiberglass sticks ,phase line ,earthing lead line and grounding clamp (grounding needle ) .lt was It is widely used in the temporary grounding of industrial and mining power industrial equipment.
1.Portable grounding rod with clamp and copper wire equipment can be divided into: indoor                           busbar type grounding wire and outdoor circuit type grounding wire according to the use environment.
2.According the vlotage level, grounding rod with clamp and copper wire equipment divided into : 0.4kv ,6kv ,10kv ,33kv ,66kv,110kv ,220kv ,330kv ,500kv,750kv .
3.Operating stikcs copper wire and clamp (grounding needle ) Portable grounding rod with clamp and copper wire equipment Outdoor use configuration

Grounding Rod / Earth Rod/Grounding Wire with Clamp
1.  Product specifications of earthing wire: 10mm²/16mm² / 25 mm² / 35mm² /50 mm² /75mm²/90mm²/95mm²/120mm²/130mm²/150mm². Also can produce as your request.

2. Product characters:
 2.1 the hook use aluminum alloy compression casting, cooked aluminum die-casting outdoor operating head, corrosion resistance, anti-oxidation.
2.2.pole use the light epoxy fiberglass manufacture, epoxy resin insulated lever, durable, effective insulation, safer use
 2.3.high strength, excellent ability of electric conduction.
2.4.Baling wire uses electrolysis copper wire.
2.5.The temperature scope for protective cover :-55-+55°C.

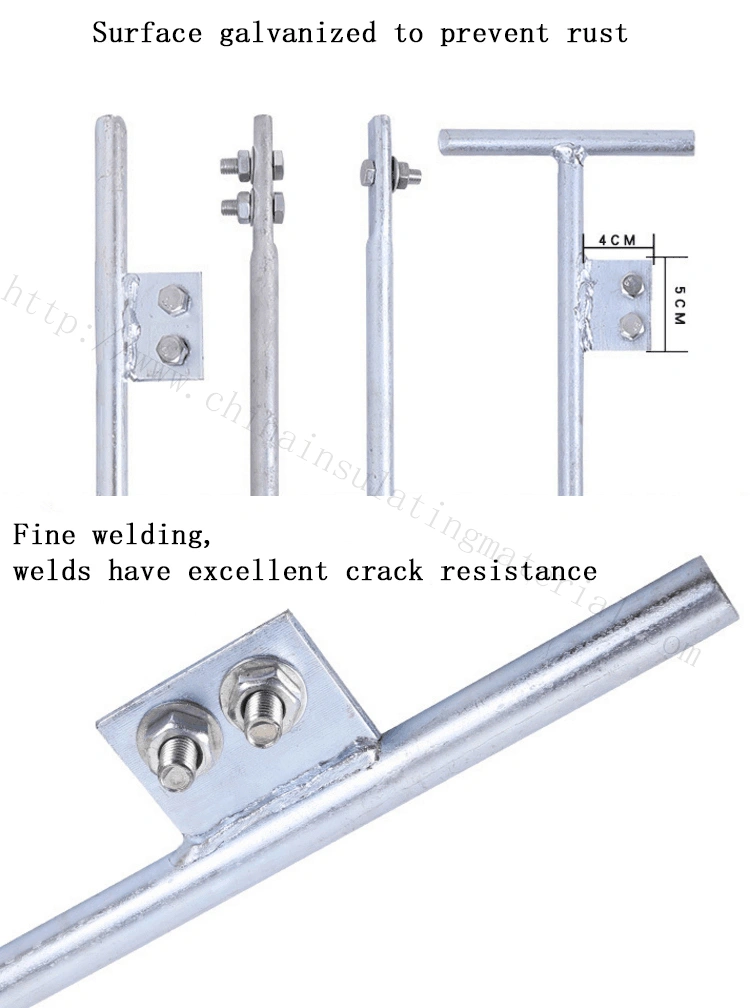

2.6. Conical ground needle: Conical ground needle adheres to soil, enlarges the discharge area of current, discharge current is fast, material hardness is high, not easy to deform.

Uses:
The construction of outdoor lines and substations, overhaul may occur the following three conditions:
1. the line of the back-flow.
2. near the charged body produces electrostatic induction.
3. the staff member error closing lead to the live ground line is likely to be charged .
The circuit is connected to the ground to form a closed circuit to ensure the personal safety of the operator and is therefore also referred to as a safety circuit.
Applications:
1>. Distribution lines and systems
2>.Transmission lines and systems
3>.Substation bus
4>.Underground systems
5>. Industrial circuits and systems

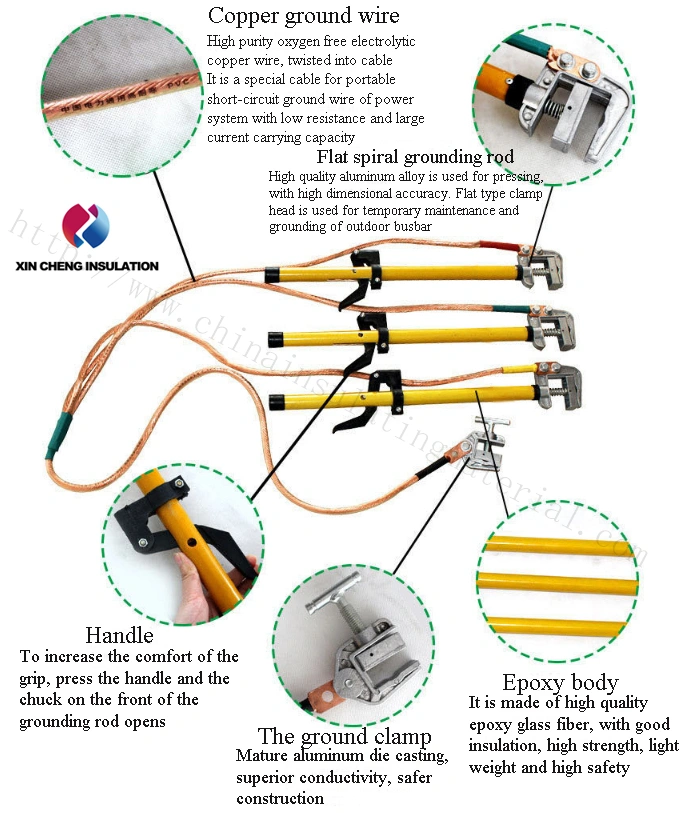

Structure:
The flat spiral grounding line by wire end terminal, short, ground wire, wiring nose, bus route, the grounding end terminal (or) temporary grounding and grounding operation bar, etc.Line end and the grounding wire clip, high quality aluminum alloy die-casting clamp and two kinds of pure copper wire clip, and its matching fasteners by metal chrome plating treatment.Grounding bar operation USES electrical and mechanical strength are good imports of advanced epoxy resin, glass fiber is delicate.Short line and grounding line type of the multi-strand fine the annealed copper stranded wire is coated with a soft, high temperature resistant made of transparent insulation layer. Ground wire clamp and insulation lever connection points have fixity and detachable type two kinds, and for substation busbar and overhead conductors such as a variety of styles, user can choose according to actual need.

Product Features
Earthing rod: epoxy, with good insulation performance;the length is optional. The hook adopts light aluminium alloy compression casting, pole use the light epoxy manufacture, hight strength, exc ellent ability of electric conduction. Baling wire uses electrolysis copper wire. The temperature scope for protective cover: ±40°C
Cooper wire's cross section area:
10mm²/16mm² / 25 mm² / 35mm² /50 mm² /75mm²/90mm²/95mm²/120mm²/130mm²/150mm²; or customized.

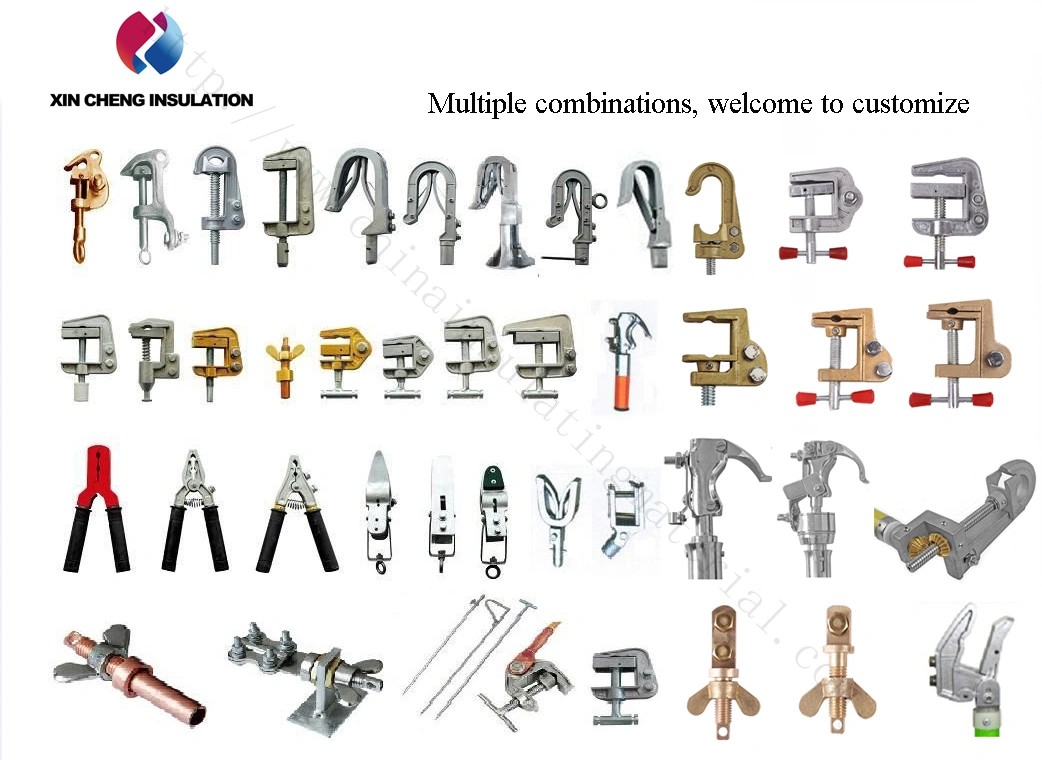

Earthing clamp's material: Aluminum or cooper

Advantages
1. Anti-moisture. Nice looking.
2. Epoxy rod with light weight and high strength
3. Easy Maintenance; easy operation, flexibly structured
4. Good insulation performance
5. The clamp use aluminum alloy orCooper compression casting
6. Stick use the light epoxy fiberglass manufacture, excellent performance of electric conduction
7. Earthing wire made of pure copper wire
8. The temperature scope for protective cover :+55°C


Technical Parameters:
TypeSuitable voltage
(kV)
Rated short- circut  current
(kA/1S)
Size of earth wire
(mm2)
Insulating length    of rod ( rope)
(mm)
XCJ-10.54.216-25≥100
XCJ-20.5-1106.5-1325-50≥300-1300
XCJ-310-2206.5-1325-50≥700-2000
XCJ-410-5006.5-1325-50≥900-3700
XCJ-5110-2206.5-1325-50≥1300-2100
XCJ-6110-5006.5-1325-50≥1300-3700
XCJ-710-2006.5-1325-50≥700-2100
XCJ-810-356.5-1325-50≥700-900
XCJ-9220-5006.5-1350-95≥2100-8000
XCJ-10500-7506.5-1395-1202100-8000
Suitable for making power failed equipment or temporary short-circuited lines grounded, preventing unexpected
power to intrude in and do damage to personnel and equipment.

 Product Features
Earthing rod: epoxy, with good insulation performance; the length is optional. The hook adopts light aluminum alloy compression casting, pole use the light epoxy manufacture, high strength, excellent ability of electric conduction. Baling wire uses electrolysis copper wire. The temperature scope for protective cover: ±55°C
Cooper wire's cross section area:
10mm²/16mm² / 25 mm² / 35mm² /50 mm² /75mm²/90mm²/95mm²/120mm²/130mm²/150mm²; or customized.

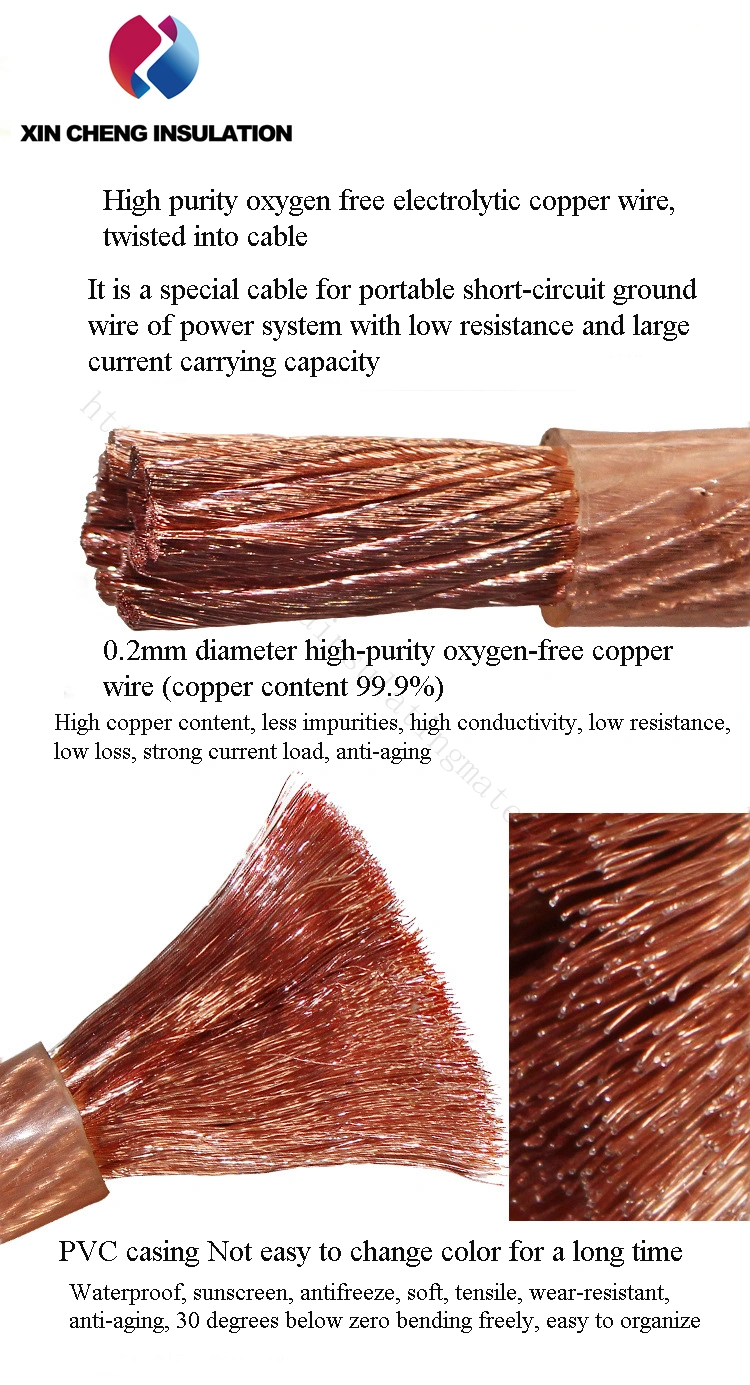

Copper wire :
High voltage earthing copper wire Multiple roots is made of 99.95% purple  copper , The overhead grounding wire is made of 99.95% copper. The multiple diameter is 0.2mm oxygen-free fine copper wire.
Copper wire advantage :
-----Hig purity 99.95%
-----Standard production
-----Free bending under minus 35 degrees
-----Long surface life

Earthing clamp's material: Aluminum or cooper

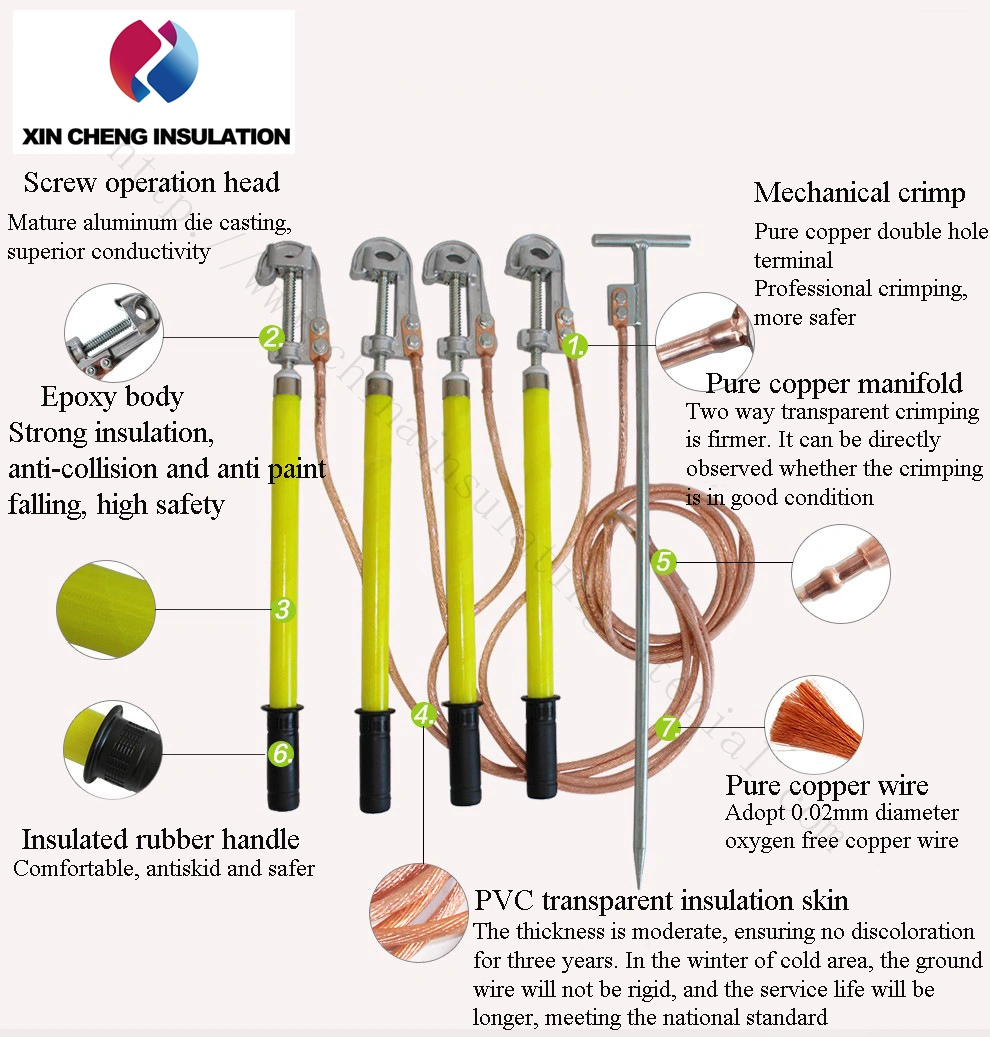

Features:
1 .The operating head made of cooked aluminum (copper) --------High strength, strong and durable
2 .The operating stick is mechanically drawn using imported epoxy resin-------Lighter than traditional craftsmanship and more strength.

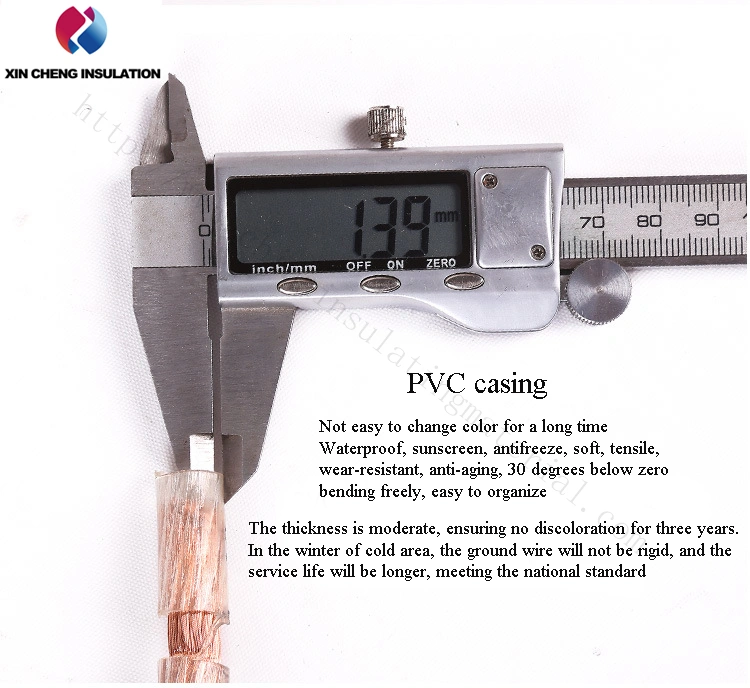

3. 99.95% standard copper wire + Transparent PVC skin.
-Wear-resistant.
-Easy to check.
-Keep soft in extremely cold weather.
-Extended service life.
4. Canvas carrying bag for easy to carry.



Packaging & Delivery
Packaging Details: Standard packing or as customer requirements
Delivery Time: After payment in 15 days
Port: Qingdao or Tianjin port
Lead Time : After payment in 15 days


FAQ
  Q 1, Could you accept the sample order and if it is free ?
 A Yes, we welcome the sample order to test and check quality. And the sample and the delivery fee are not free, as many samples are requested to be sent.

 Q 2, How do you ship the goods and how long does it take to arrive?
 A The sample is usually transported by DHL, Fedex, UPS or TNT express. We will choose the economical express and transport way according to the goods quantity, or as the requirements of client's . The express time is usually around 3-7 working days.

 Q 3, Do you provide the customized service and OEM?
 A Yes, it is available.

 Q 4, How about the after sale service?
 A Any questions, pls contact us freely! We will service you well !
Our supply ability: 250,000 Piece/Pieces per Month, More specific u can understand us through email.
