Home > Products > Transformer tap changer > Non-Excitation Strip Tap Switch Transformer Tap Changer Switches off Circuit Tap Changer

Non-Excitation Strip Tap Switch Transformer Tap Changer Switches off Circuit Tap Changer

Product Description

Quick Details
Place of Origin: China (Mainland)                                        Brand Name: XINCHENG
Product name: off circuit tap changer                                   Model Number: W_ T_
Rated current: Under 500A                                                   Max. Voltage: 10-35KV, 35KV
Regulation: 2.5% per position                                              Type: Off Load
Function: Voltage Regulating                                               Phase Type: Three or single
Grade No.: 3 - 9 different as different product                     Tapping position: 5-7-8 different as different product
Usage: oil immersed distribution transformer & power transformer
Regulating Position1: Neutral/Central/Terminal
Regulating Position2: Y-Triangle conversion/ series-parallel connection     Mechanical Life: 20000times
Supply Ability: 35000 Piece/Pieces per Month


Non-excitation tap switch applies to oil-immersed transformer with 50Hz or 60Hz of rated frequency. In case of no excitation in transformer (i.e. no winding is charged), the switch can be operated manually or electrically to change the tapping position and further to change the transformation ratio, and by this means, secondary voltage can be adjusted or stabilized.

Specific introduction:
This series of switches is composed of the main body of the switch and the operation turning organ. They are applicable to the oil-immersed transformers with the frequency of 50Hz, 60Hz. They ca be fixed on the body of the transformer or on the box-cover, and be tapped, regulated and changed under on excitation condition.
1.This kind of electric off circuit tap changer applies to the single-phase, three-phase, combination oil-immersed transformer of electrical power .
2.The frequency of 50HZ,60HZ,rated voltage of 10KV,35KV,rated current of 30A~250A;the voltage-regulating places are: central part, neutral
point, can be directly fixed on the box-cover of the transformer
3.under the non-excitation condition regulating and changing.
4.power device


Chinese manufacturer off circuit tap changer

WST series off-circuit off load tap changer for transformer
This kind of switch applies to the single-phase, three phase, combination oil-immersed transformer electrical power with frequency of 50Hz,60Hz, rated voltage of 10KV,35KV, rated current of 30A~500A; the voltage-regulating mode are central part, terminal point and neutral point, which can be directly fixed on the tank cover of the transformer and exchanged under the off-circuit condition.


Non-excitation strip Tap Changer for voltage regulator :This kind of switch applies to the single-phase, three phase, combination oil-immersed transformer electrical power with frequency of 50HZ,60HZ,rated voltage of 10KV,35KV,rated current of 30A~500A;the voltage-regulating mode are: central part, terminal point neutral point, which can be directly fixed on the tank cover of the transformer, exchange under the off-circuit condition.

 Technical Data:
 SpecificationsWST 30WST 63WST 125WST 250WST 400WST 500
 Phase number           three-phases
 Connection mode(2          (3        (1)
Central point(2)Neutral Point(3)Terminal Point(1)
Rated through current(A)3063125250400500
  0.71.62.53.7545
Short-circuit capacityHeat stableness current(KA/2s)
  1.846.259.3751012.5
 Dynamic stableness current(KA)
  Rated frequency50~60
 (KV)Rated Voltage10KV20KV35KV
Insulation level(KV)Power-frequency withstand Voltage(50Hz/1min)42KV55KV95KV
 Impulse(1.2/50μs)75KV125KV250KV
Sealing Performance(KPa/24h)60
Machine life(Thousands of times)2


Our other product series:

WST series off-circuit off load tap changer for transformer
This kind of switch applies to the single-phase, three phase, combination oil-immersed transformer electrical power with frequency of 50Hz,60Hz, rated voltage of 10KV,35KV, rated current of 30A~500A; the voltage-regulating mode are central part, terminal point and neutral point, which can be directly fixed on the tank cover of the transformer and exchanged under the off-circuit condition.

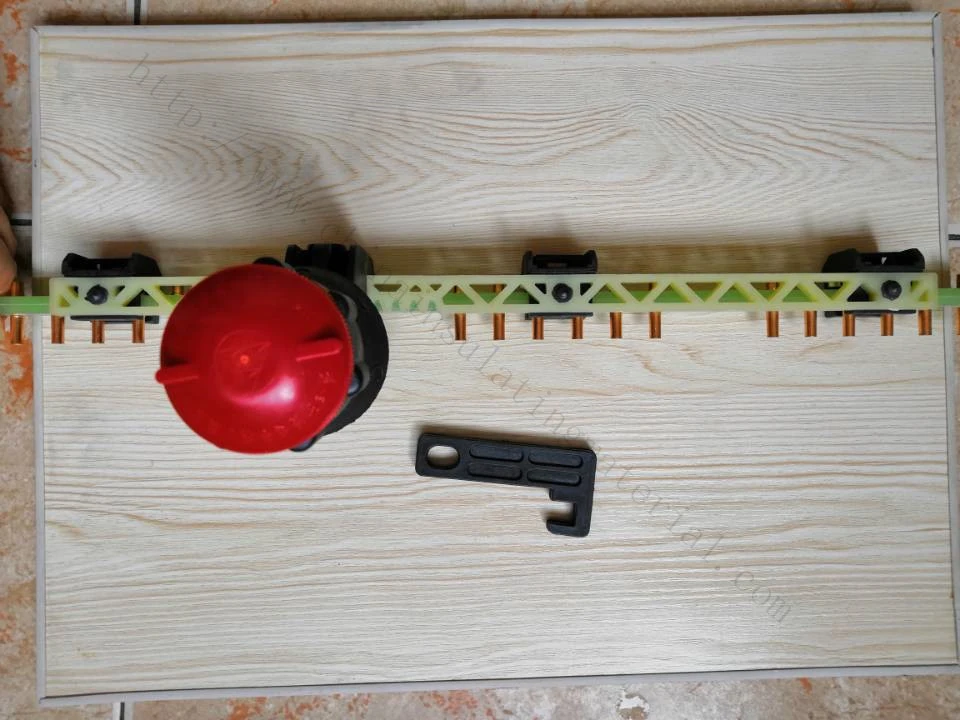

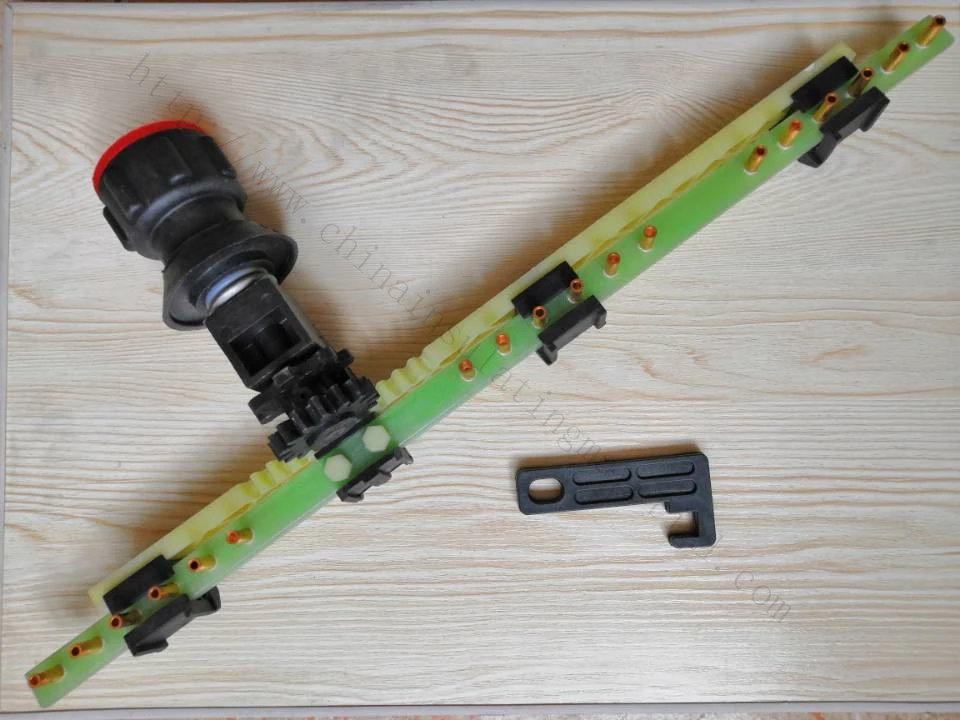

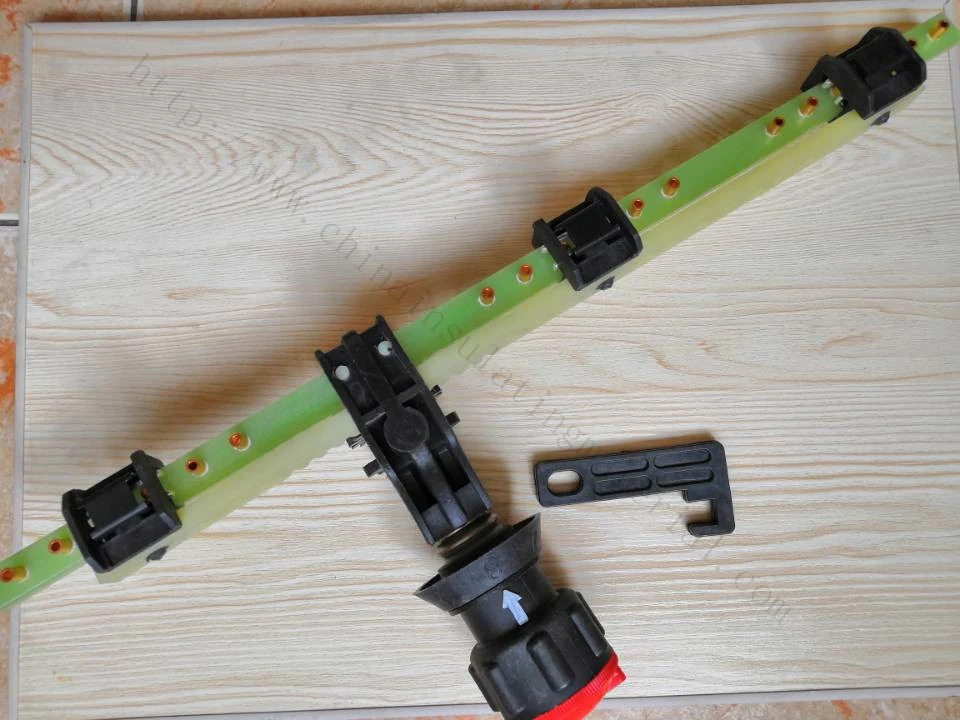

Off-circuit Single Phase Linear Tap Changer
-Used in mineral oil or silicon oil                            -Used in mineral oil or silicon oil
-Rated voltage 10KV-35KV                                 -Rated voltage 10KV-24KV
-Rated current from 63A-250A                              -Rated current from 30A-63A
-Tapping position:3-7                                     -Tapping position:3-7
-Regulation 2.5% per position                               -Regulation 2.5% per position

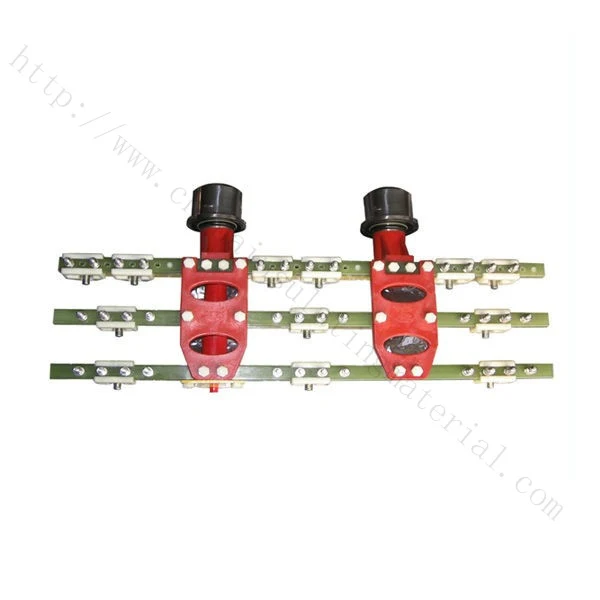

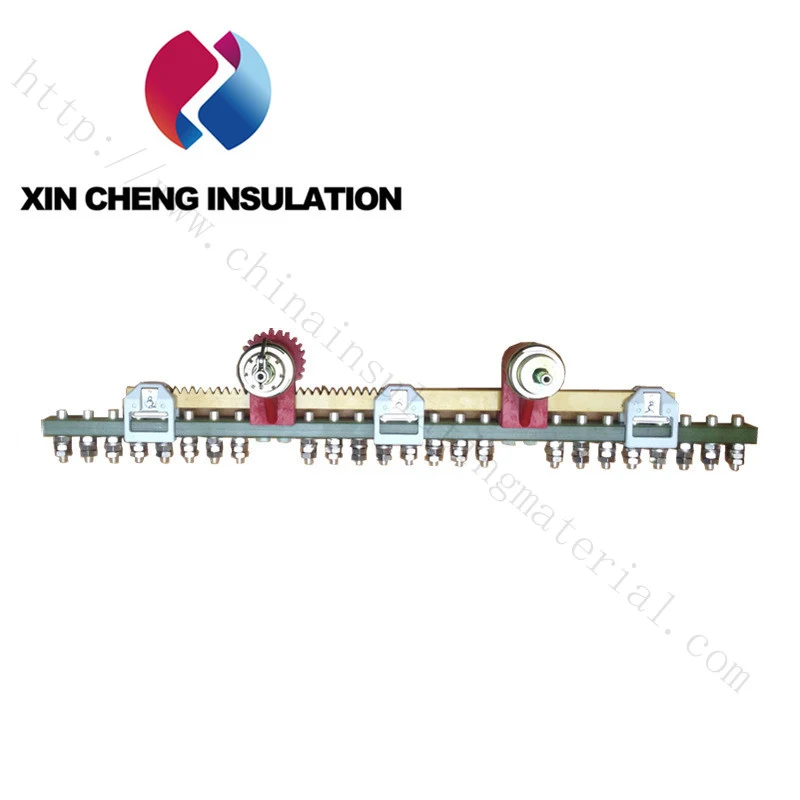

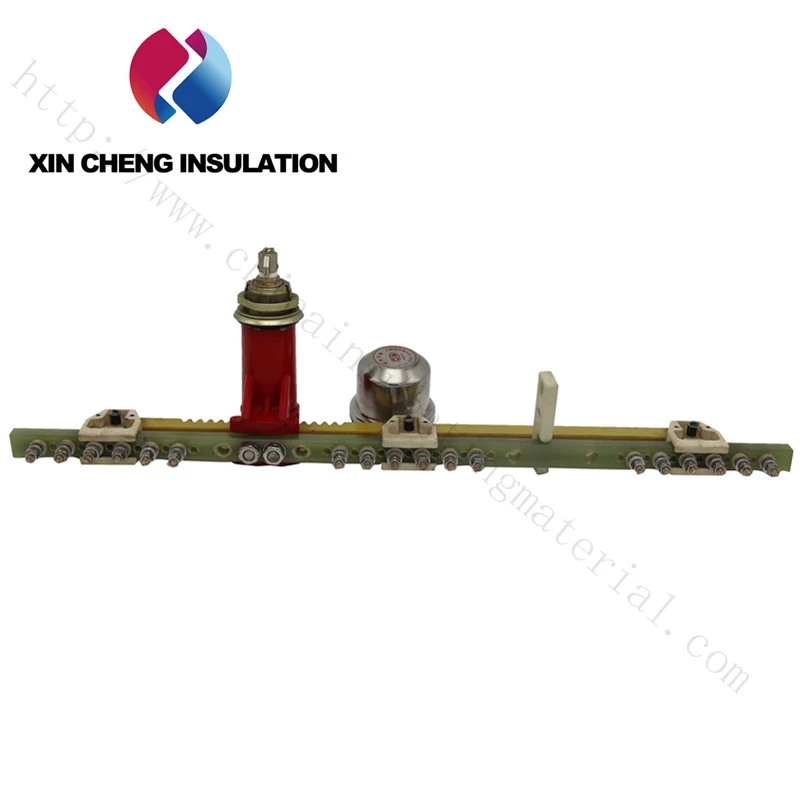

Off-circuit Three Phase Linear Tap Changer
-Used in mineral oil or silicon oil                            -Used in mineral oil or silicon oil
-Rated voltage 10KV-35KV                                -Rated voltage 10KV-35KV
-Rated current from 63A-300A                             -Rated current from 63A-250A
-Tapping position:3-9                                    -Tapping position:3-7
-Regulation 2.5% per position                             -Regulation 2.5% per position

Off-circuit Combination Linear Type (ZH2)Three Phase Linear Tap Changer
-Used in mineral oil or silicon oil
-Rated voltage 10KV-35KV
-Rated current from 63A-250A
-Tapping position:3-5
-Regulation 2.5% per position
Off-circuit Combination Linear Type (ZH3)Three Phase Linear Tap Changer
-Used in mineral oil or silicon oil
-Rated voltage 20KV
-Rated current from 63A-250A
-Tapping position:3-5
-Regulation 2.5% per position


FAQ
1. Can you offer test report of the product?
A: We test every product before packing and delivery. Test report will be provided by requirement.
2. Can you offer components of the products?
A: Yes, we also sell components separately too.
3. Shall we pay for the sample charges? How to pay and how to deliver us?
A: For low cost samples, we providing with FOC, customer need to pay for the freight through Western Union etc or providing with freight collection account of courier like DHL, THT, FedEx, the sample will be sent by courier.
4. Could you manufacture the products according to my drawing or sample?
A: Yes, ODM is available, we also could manufacture the products according to customer's drawing or replicate sample.
5. If new mould is needed, shall we pay for the mould cost? If mould cost will be refunded?
A: Yes, customer will be asked to pay for the mould cost, this mould cost will be deducted gradually from your orders.
6. More question
A:Feel free to contact me, you will get immediately reply


Packaging & Delivery
Packaging Details    standard export packing  Carton Box + Wooden Pallet
Delivery Time  2-4 weeks upon deposit
Port: Tianjin, Shanghai, Qingdao
